Description

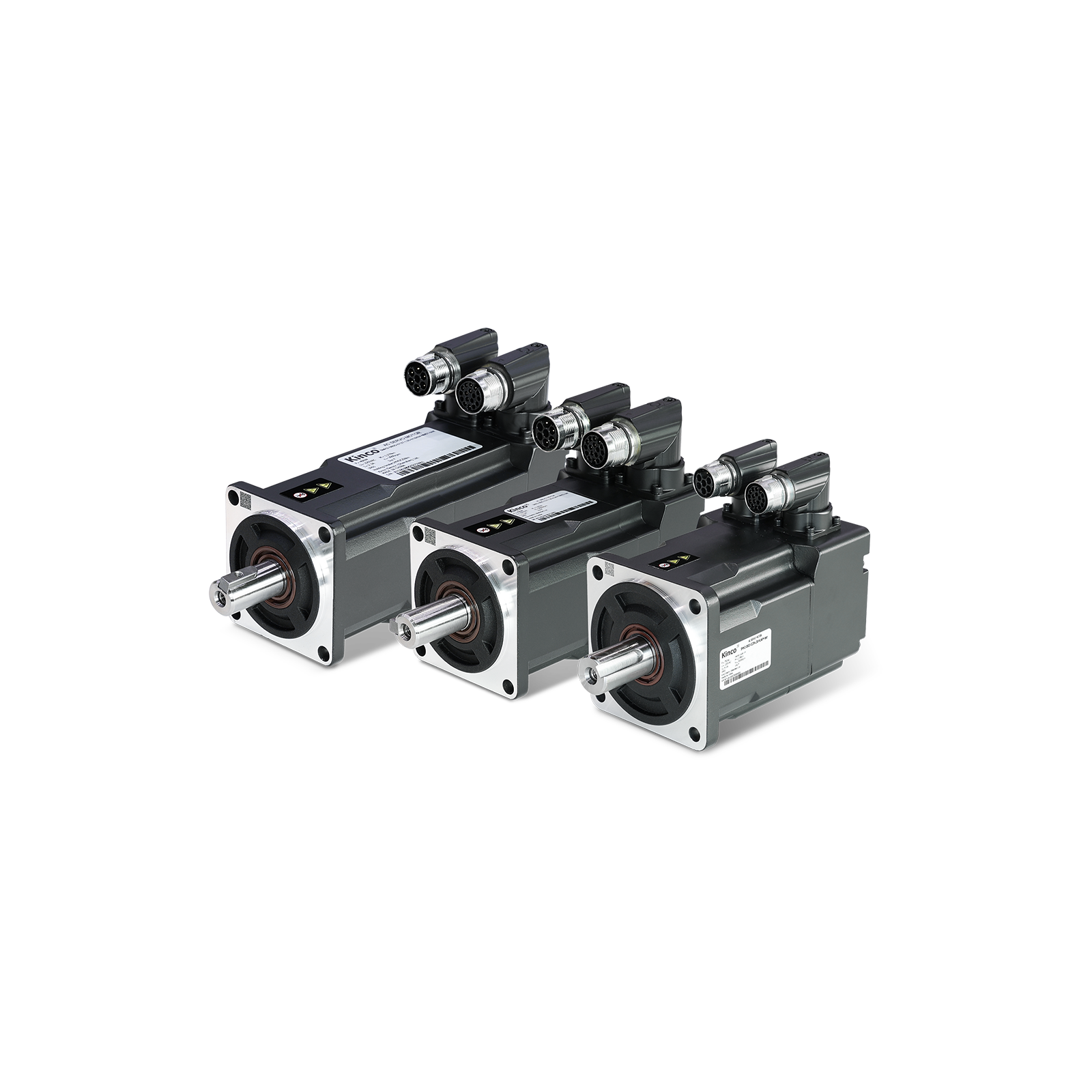

Kinco SMH Series AC Servo Motors feature a European design, low cogging torque, strong performance and low temperature rise. The series covers a wide range of industrial motion-control applications, with motor options differing in rated power, flange size, rated speed, encoder, brake, shaft and connector configuration. Available frame families include SMH60S, SMH80S, SMH110D, SMH130D, SMH150D and SMH180D. Depending on the model, options include 220 VAC or 380 VAC operation, incremental or other supported encoder configurations, and motors with or without a holding brake. Applications include cutting machinery, engraving machines, laser cutting equipment, packaging systems, CNC machinery and industrial automation. Select the complete model number and confirm the matching servo drive using the official Kinco documentation. Official reference: https://www.kinco.cn/product/133?classification_id=31
| Model Code Note |
□ represents a variant character in the published model family; confirm the full order code before purchasing |
| Official Product Reference |
https://www.kinco.cn/product/133?classification_id=31 |
| Applications |
CNC, longitudinal cutting, engraving, laser cutting, packaging and industrial automation |
| Compatible Servo Drive |
Select according to motor voltage, current, power and feedback |
| Protection Rating |
Verify the individual model datasheet |
| Maximum Speed |
Model-specific; use the official datasheet |
| Rated Current |
Model-specific; use the official datasheet |
| Rated Speed |
Model-specific; check the complete model code |
| Rated Torque |
Model-specific; use the official comparison table |
| Rated Power |
Model-specific; use the official comparison table |
| Rated Voltage |
220 VAC or 380 VAC, depending on model |
| Connector Configuration |
Depends on the model suffix |
| Shaft Configuration |
Check the model drawing and complete motor code |
| Brake Option |
Available on selected models; confirm exact suffix |
| Encoder Options |
Model-dependent; confirm exact suffix in the manual |
| Model 21 |
SMH180D-0750-15R□K-4HKC |
| Model 20 |
SMH180D-0550-15R□K-4HKC |
| Model 19 |
SMH180D-0440-15A□K-4HKC |
| Model 18 |
SMH180D-0350-15A□K-4HKC |
| Model 17 |
SMH150D-0380-20A□K-4HKC |
| Model 16 |
SMH150D-0300-20A□K-4HKC |
| Model 15 |
SMH150D-0230-20A□K-4HKC |
| Model 14 |
SMH130D-0300-20A□K-4HKC |
| Model 13 |
SMH130D-0210-20A□K-4HKC |
| Model 12 |
SMH130D-0157-20A□K-4HKC |
| Model 11 |
SMH130D-0105-20A□K-4HKC |
| Model 10 |
SMH110D-0188-30A□K-4HKC |
| Model 09 |
SMH110D-0157-30A□K-4HKC |
| Model 08 |
SMH110D-0126-30A□K-4HKC |
| Model 07 |
SMH110D-0126-20A□K-4LKC |
| Model 06 |
SMH110D-0125-30A□K-4LKC |
| Model 05 |
SMH110D-0105-20A□K-4LKC |
| Model 04 |
SMH80S-0100-30A□K-3LK□ |
| Model 03 |
SMH80S-0075-30A□K-3LK□ |
| Model 02 |
SMH60S-0040-30A□K-3LK□ |
| Model 01 |
SMH60S-0020-30A□K-3LK□ |
| SMH180D Frame |
180 mm flange, medium inertia |
| SMH150D Frame |
150 mm flange, medium inertia |
| SMH130D Frame |
130 mm flange, medium inertia |
| SMH110D Frame |
110 mm flange, medium inertia |
| SMH80S Frame |
80 mm flange, small inertia |
| SMH60S Frame |
60 mm flange, small inertia |
| Available Frame Families |
SMH60S, SMH80S, SMH110D, SMH130D, SMH150D, SMH180D |
| Power Range |
50 W to 7.5 kW (series range; verify individual model availability) |
| Official Series Page |
https://www.kinco.cn/product/133?classification_id=31 |
| Product Type |
AC Servo Motor |
| Product Series |
SMH Series |
| Brand |
Kinco |
